VetSmart veterinary X-ray table with overhead tube column, touchscreen monitor, and rolling base

Vetsmart 30kw with 17T

This system stands out for its “smart” technology. Dual 3D cameras in the collimator automatically measure the body part’s thickness—no manual measuring required. The patented Auto Thickness Detection (ATD) and Smart APR (Anatomical Programmed Radiography) use that data to automatically set mA, time, and kVp, removing guesswork and reducing retakes. Fewer repeats mean lower radiation exposure for both staff and patients.

Overview

The Latest in Veterinary X-Ray Technology

VetSmart veterinary X-ray table with overhead tube column, touchscreen monitor, and rolling base
  • Fixed 40” SID
  • Toshiba x-ray tube 140 HU 1-2mm focal spot
  • kVp range: 40-150kV
  • Single Phase 208-230VAC
  • High frequency 32 kW capacitor assisted 400mA generator
  • 15” Touch Screen Operator Console
VetSmart veterinary X-ray table shown from an angled view with overhead arm and cabinet logo
  • Six exclusive design table base/table top designs
    • 30” Base w/40”, 48”, 56” table top options
    • 40” base w/48”, 56”, 64” table top options
    • Oval top w/urine track
  • Unique Push and Open pull out tray to access DR detector
  • Exclusive Push and Open Front panel latch mechanism for easy generator access
Technical schematic diagram overlaid on a veterinary X-ray generator control cabinet showing internal wiring
  • Low input amperage
  • SMART APR
  • Remote real-time monitoring, calibration and maintenance features (optional)
  • Exclusive self-diagnostic tool based on Iot and machine learning
  • Eliminate need for onsite service technicians
Exploded technical diagram of a veterinary X-ray tube head and detector assembly components
  • Patented ATD (Auto Thickness Detection) technology
  • Open APR integration: control kV, mA, and mS
  • Exclusively control generator dosage (embedded AI/lot) by detecting body part for ideal exposure

Veterinary Specific Software

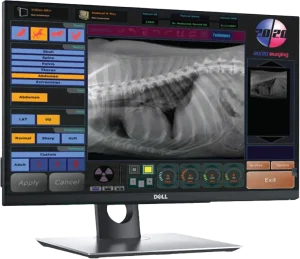

20/20 Imaging touchscreen interface for selecting veterinary X-ray technique by animal type and body region, with a sample radiograph

ACQUISITION INTERFACE

  • Under 6 second Processing
  • Preset X-ray Exams
  • Annotomical Program (APR)
  • Advanced Image Processing
  • Touchscreen Enabled
  • Background Submission
  • Animal Specific
  • Fully Customizable
  • Image Adjustment Tools
  • User Friendly Interface
Veterinary X-ray viewing software displaying an annotated canine abdominal radiograph with measurement lines
  • Advanced Viewer
  • Vertibral Heart Score Tool
  • Fast, User Friendly Interface
  • Image Fine Tuning
  • Exam Room Viewing
20/20 Imaging PACS worklist screen listing veterinary radiology studies, shown on a Dell monitor
  • Multi-funtion Studylist
  • PM Software Integration
  • Burn/Import CDs
  • Custom Search/Query
  • Customized User Settings
Vetsmart imaging software showing a study worklist and canine chest radiograph displayed on paired tablet screens

MOBILE VIEWING WITH M-OPAL

  • Multi-funtion Studylist
  • PM Software Integration
  • Burn/Import CDs
  • Custom Search/Query
  • Customized User Settings

17x17 UNIVERSAL DR FLAT PANEL

VetSmart wireless flat-panel digital X-ray detector with connected cable
  • Tethered Interface
  • Cesium Scintillator
  • 16-bit Images
  • Cassete Sized
  • 139 micron | 3.6 lp/mm
  • 5 year MFG warranty
