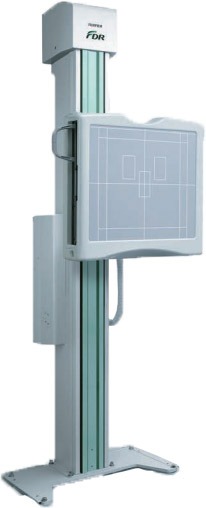

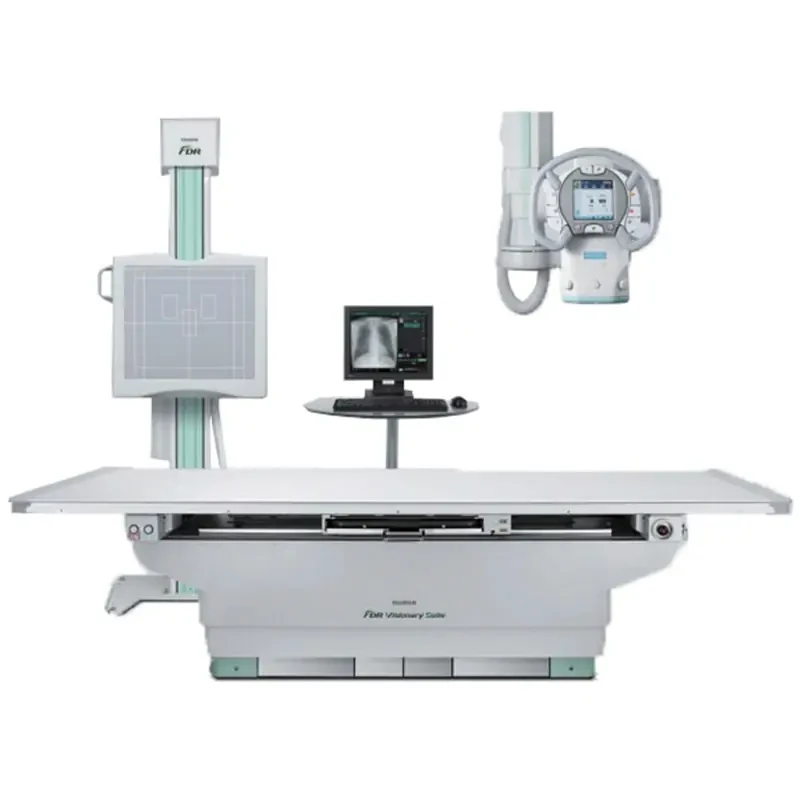

The FDR Visionary Suite from Fujifilm is designed to revolutionize your workflow by offering unparalleled speed and repeatability. This advanced suite ensures that your imaging processes are not only faster but also more efficient, leading to a significant enhancement in overall productivity.
One of the standout features of the FDR Visionary Suite is Fujifilm’s proprietary Irradiated Side Sampling (ISS) technology. This cutting-edge technology takes image capture to the next level by delivering exceptionally high sharpness and superior Detective Quantum Efficiency (DQE). With ISS, images are not only clearer and more detailed, but the technology also supports lightning-fast preview and cycle times, making it easier to capture high-quality images quickly and consistently. This means less waiting time, quicker diagnoses, and a smoother, more streamlined workflow.
The combination of speed, precision, and efficiency provided by the FDR Visionary Suite makes it an invaluable asset for any medical imaging facility looking to improve their diagnostic capabilities and patient throughput.
This technology takes multiple images in one sweep and automatically stitches them to create images of up to 63” upright and 47” supine. Misaligned images caused by patient body movements can be automatically corrected through automatic motion correction software.
With this optional technology, the x-ray tube acquires a series of images in a single sweep that are then reconstructed to create coronal cross-sectional image slices.
Fujifilm’s Dual Energy Subtraction (DES) is an optional advanced radiographic application designed to facilitate radiologist interpretation of an exam by eliminating anatomical structures that might otherwise obscure pathology.
This technology, using the difference in x-ray energy absorption, creates separate images of soft tissue and bone. These images are then processed to create a single chest x-ray image.

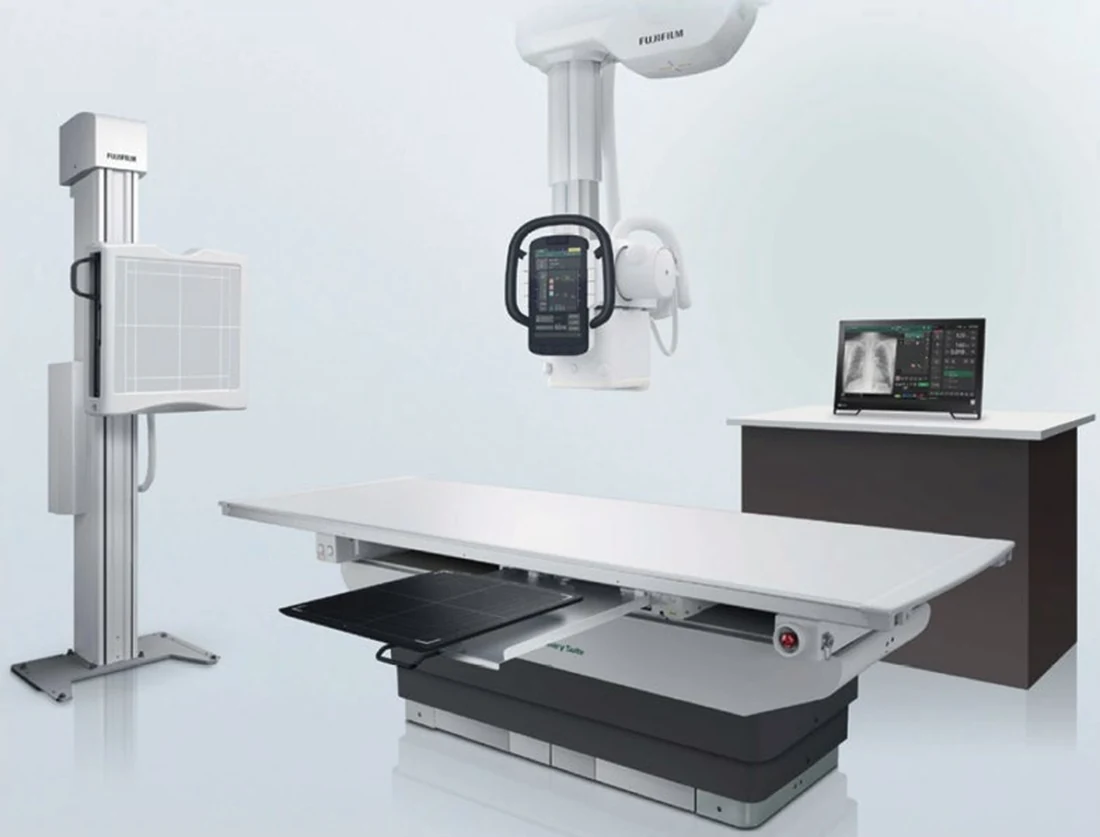

Fujifilm has released a set of upgrades to the FDR Visionary Suite that streamline daily operations and help improve image quality. The updates cover the acquisition console, detector compatibility, and camera aided positioning at the tube head.

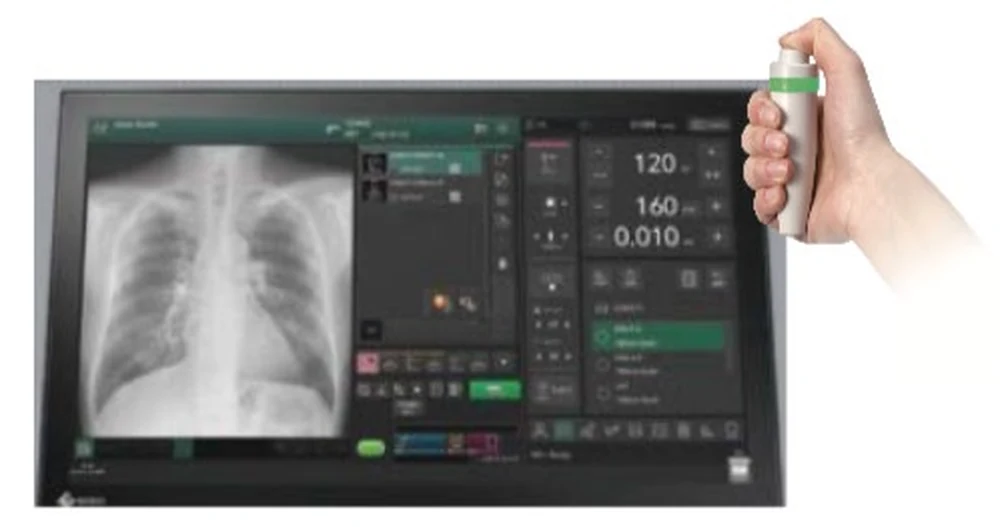

The new integrated acquisition console handles system control and exam processing from one place, so setup, acquisition and review all happen at a single screen instead of across separate stations.
The Visionary Suite is now fully compatible with FDR D-EVO III panels, including the G80i. These panels support the suite’s advanced applications, including stitching, tomosynthesis and bone subtraction.
Worth knowing before you plan an upgrade. The G80i is not connectable to previous versions of the FDR Visionary Suite, and the original Advanced Panel for tomosynthesis and bone subtraction has been discontinued.
A live camera view at the tube head helps verify positioning and anatomy coverage before the exposure, which cuts down on cutoff and retakes.

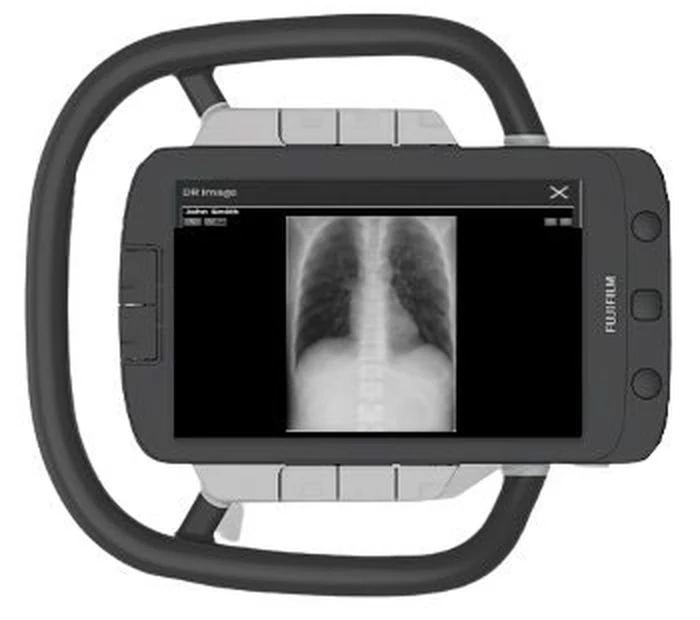

New image preview at the tube head lets the technologist confirm the image they just acquired without walking back to the console.
The new AEC overlay gives visual positioning guidance and accurate exposure selection to help reduce retakes. Available as an option.
Reproduces prior exam positioning for follow-up studies, which keeps exams consistent from one visit to the next. Available as an option.
Alerts the technologist and shows how far the patient has moved from the original position, before the exposure is taken. Available as an option.
