Overview

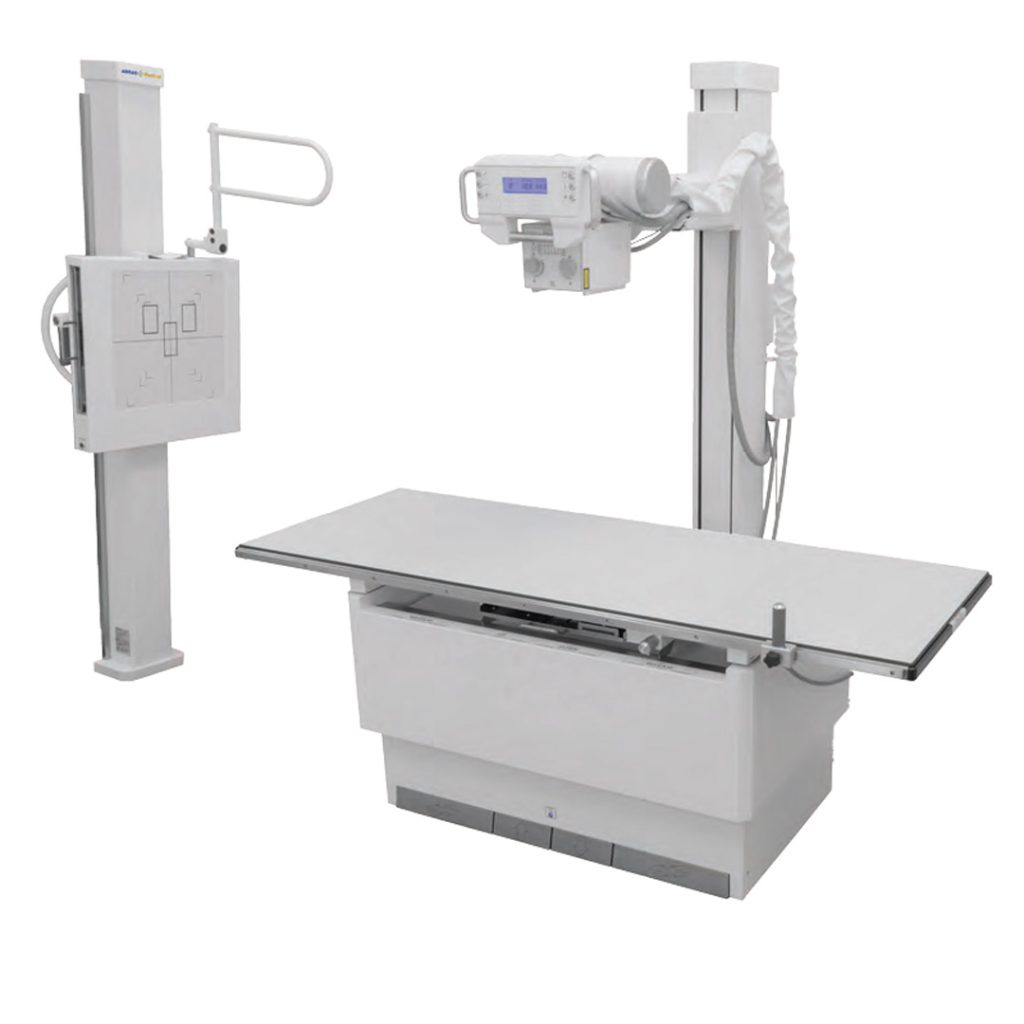

Designed for high-volume throughput in hospitals, orthopedics, and medical imaging facilities, the DFMT Elite from XR Fusion can handle a wide variety of exams while enhancing technologist productivity and patient workflow.
Its simplicity and functionality provide extensive positioning capabilities for patient procedures, including cross-table laterals. With feature-rich controls and user-friendly operation, technologists can concentrate on delivering quality patient care.
Features
- Robustly designed for high-volume facilities
- Smart Button Technology
- Buttons for vertical and horizontal
movement intuitively swap
functions for seamless operation - Adaptive Optimal Display
display changes orientation for easy viewing - Simple service
- LED operational status indicators
- Free-standing floor mount
- Technologist-friendly, smart button technology
- Adaptive Optimal Display
- +/- 180° column rotation, 8.5” transverse travel
- +/- 135° tube angulation with detents at zero and +/-90°
- 15” - 72” vertical travel
- Easily fits into 8’ ceiling height (92.5” ceiling minimum)
- Elevating
- 650 lb. Patient Rated with Collision Protection
- Recessed foot pedals for patient safety
- 30” x 84” flat table top
- 23” – 34” variable working height with working height indicator light
- 30 inch longitudinal travel; 10 inch transverse travel
- Table-top lock release and elevation handle
- Vertical travel of Detector Center: 15” –70” above finished floor
- Center or side mount, available
- Ergonomic lock release and positioning handle
- PA Hand Grips
- Overhead Patient Grip
- Remote Collimator Light
- 150 kVp rated collimator
- Multi-layer, square field
- LASER positioning light
- Tape Measure
- Minimum Inherent Filtration: 2mm Al equivalent
- White LED Light Source
- 6 pairs of shutters
BMI provides the widest variety of generators available from today’s x-ray manufacturers. 30kW – 80kW, we offer the generator type to best suit your individual needs. Ask your Authorized XR FUSION Dealer or one of our professional Imaging Consultants to help you configure the best solution for your patients. Generator integration, available
