Overview

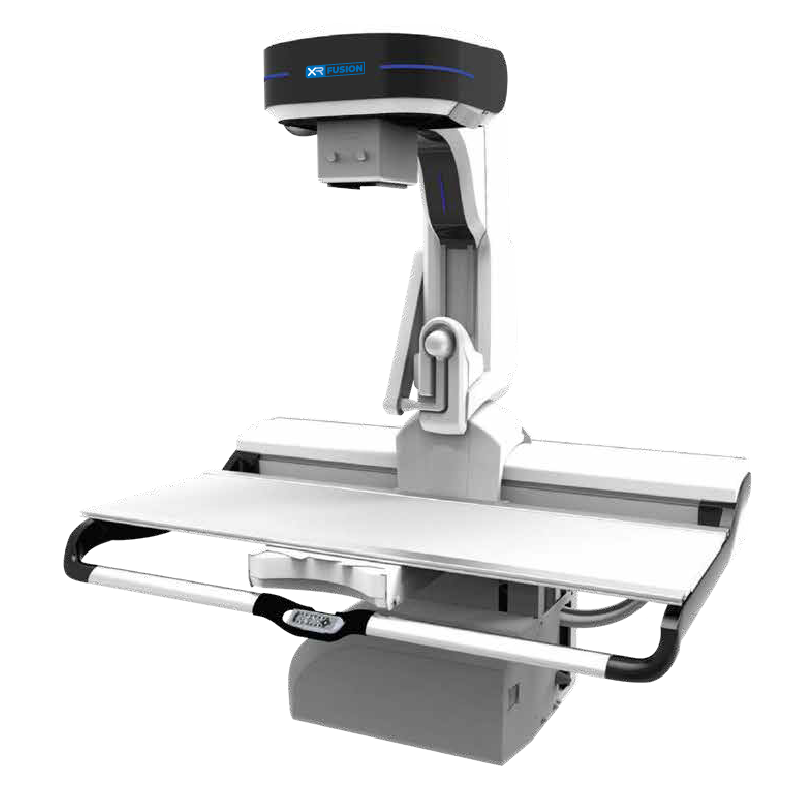

Limited on space? The XR FUSION® Medical Aptitude R/F multi-purpose system is designed to handle a wide array of procedures, meeting the needs of Radiologists, Orthopedists, Urologists, and Speech Pathologists by enabling many special procedures to transition from highly specialized departments back into Radiology.
The Aptitude offers real-time diagnostic imaging for a diverse range of procedures, including digestive, vascular, cardiovascular, and urinary, as well as various interventional guidance applications while also catering to general radiology exams, including those requiring stitching (optional).
The 9025 tilt provides a space-efficient design, maximizing the utilization of your Fluoroscopic Suite with our multi-purpose Aptitude R/F system.
Features
- Table tilt of + 90°/- 25°, motorized at 6°/s
- Space saving design with integrated electronics
- The wide width flat tabletop, 88.5 in x 31.9 in (225 cm x 81 cm) allows for convenient positioning and centering for bariatric patients.
- Composite footrest allows profile exams with optimum comfort and safety for the patient
- The main control features sensitive capacitive keys and touchscreen where table & generator parameters can be selected
- Fitted with HIRIS RF 43 FL digital system that includes one acquisition console and one 17” x 17” large format flat panel detector which provide exceptional image quality
- Motorized angulations +/- 40° (10°/s maximum) even at the end of table, for specific
- procedures and direct exposures with tube rotation
- Manual tube rotation +/- 180°, electrically assisted, with electromagnetic brake to choose any tube angulation
- Mechanical stops every 90°
- 6 cm/s, variable continuously from 43.3 in (110 cm) to 70.9 in (180 cm)
- Fitted with four pairs of mobile lead shutters and two pairs of pre-shutters.
- LED light beam
- Motorized variable height, 6 cm/s, cm/s, from 24.8 in (63 cm) to 36.6 in (93 cm)
- Maximum load capacity up to 507 lb (230 kg) for all movements without any limitation, and up to 683 lb (310 kg) with some restrictions.
- Motorized lateral movement, +/- 7 in (18 cm) at 2.4 in/s (6 cm/s)
- Motorized longitudinal movement, +47.2 in/-23.6 in (+120 cm/-60 cm) (other inferior values on request) at 3.1 in/s
BMI provides the widest variety of generators available from today’s x-ray manufacturers. 30kW – 80kW, we offer the generator type to best suit your individual needs. Ask your Authorized XR FUSION Dealer or one of our professional Imaging Consultants to help you configure the best solution for your patients. Generator integration, available
