AeroDR® Glassless Flat Panel Detectors

Overview

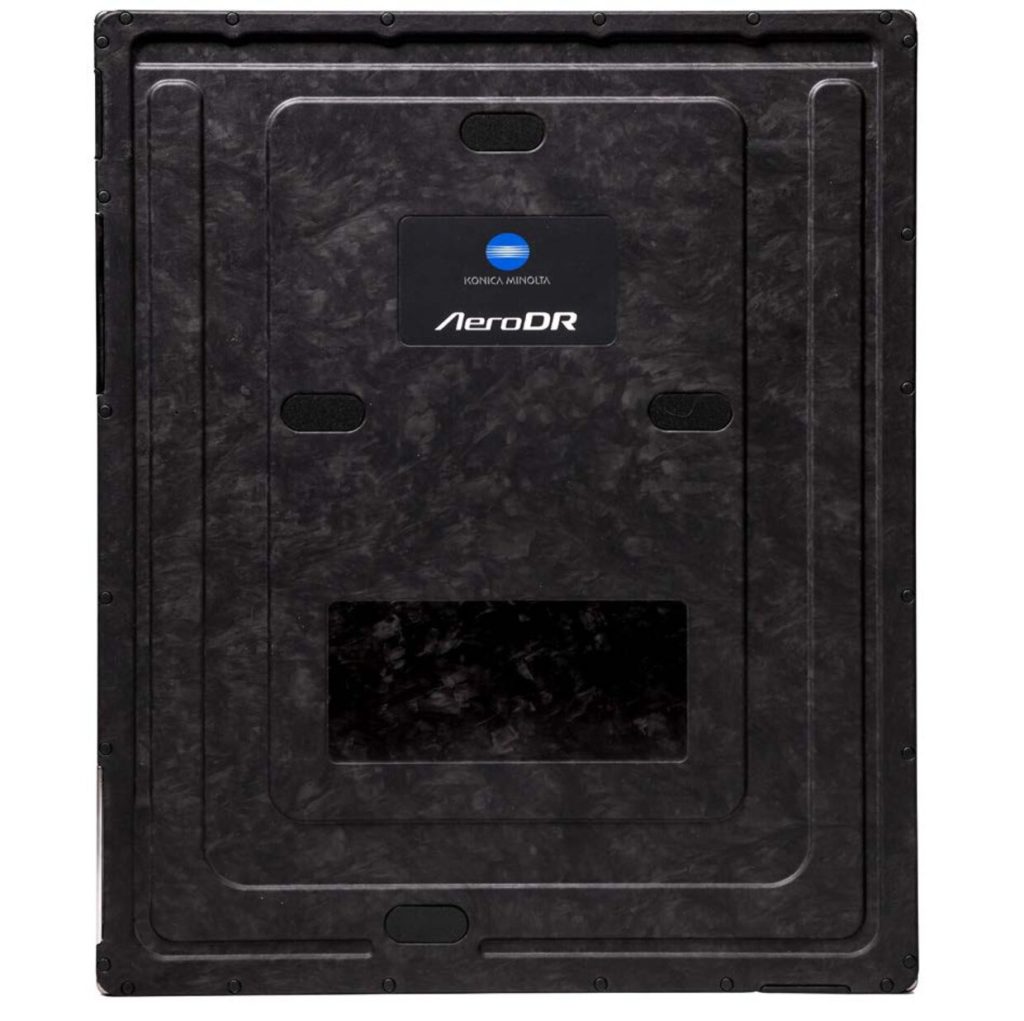

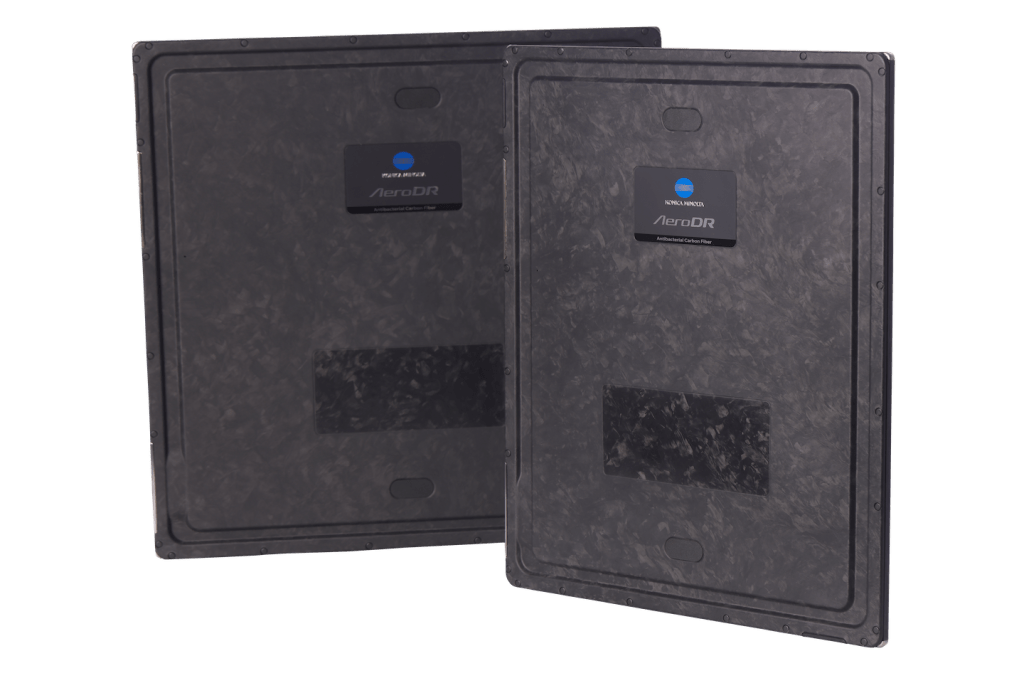

AeroDR Glassless Flat Panel Detectors

Lightweight, Durable, and Efficient

Konica Minolta’s AeroDR® line of flat panel detectors offers top-tier digital radiography solutions designed to meet both clinical and economic needs. Our AeroDR Glassless Flat Panel Detectors stand out as the lightest and strongest in our range, aimed at improving efficiency and reducing user fatigue without any compromise.

Key Features

Ergonomic Design: Enhance user comfort with a design tailored for ease of use.
Reliable Load-Bearing Performance: Built to withstand daily clinical demands.
MIL-STD-810G Drop Test Certified: Proven durability meeting military-grade standards.
IP56 Waterproof/Dustproof Compliant: Engineered to perform in various environments, ensuring longevity and reliability.

The glass substrate was substituted with a thin film transistor (TFT).

AeroDR Glassless Flat Panel Detectors utilize a thin film instead of a glass substrate, making them lighter. This glassless design reduces the distance between the scintillator and the TFT, enhancing sensitivity. The electronics are optimized to minimize electrical noise.

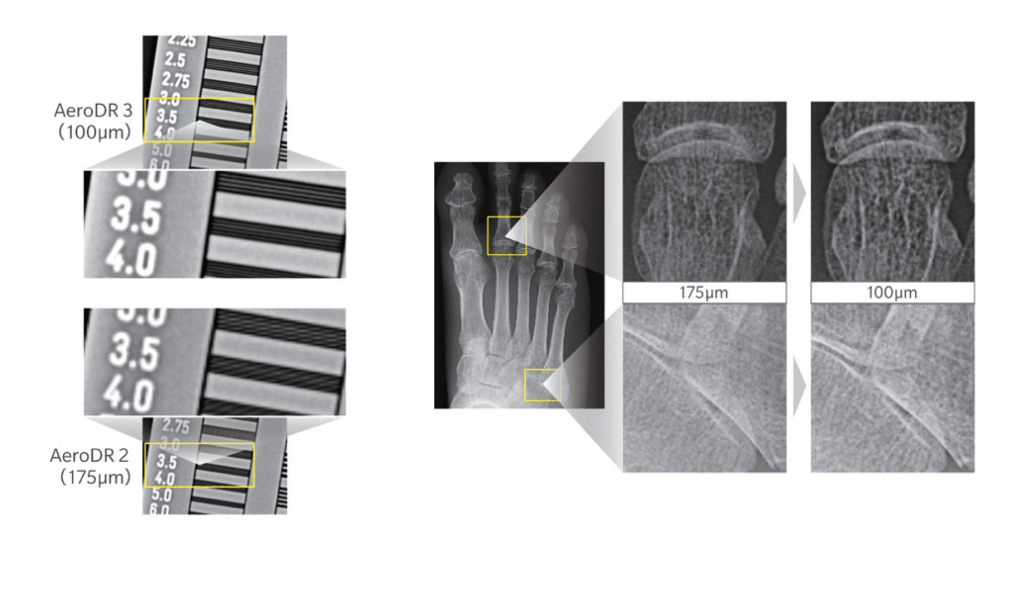

Additionally, the AeroDR Glassless Product Line features a High-Definition (HD) option that delivers enhanced detail at 100μ. There is also a High Dynamic Range option, offering 200μ resolution for a broader range of tone variations to better visualize tissue.

AeroDR GL HD-2

Glassless Enhanced Resolution 100μm/200μm Imaging (Selectable)

Power cell life up to 8.6 hours on full charge (2 LiC)
14″ x 17″ panel weighs 4.2 lbs/1.9 kg super lightweight, including the capacitors
17″x17″ panel weighs 5.1 lbs/2.3 kg
IPX56 dust and liquid resistance (with integrated power supply)
4.0 sec AED with AeroSync®
Image area 348.8 x 425.6mm / 3,488 x 4,256 pixels
External dimensions 15.1″x18.11″x 0.6″
Matrix size 14″x17″ 3,488 × 4,256 (100μ） / 17″x17″ 4,256 x 4,256 (100μ）
Image preview in ~2 seconds
Diagnostic view in 4-7 seconds, depending on pixel size and generator connection

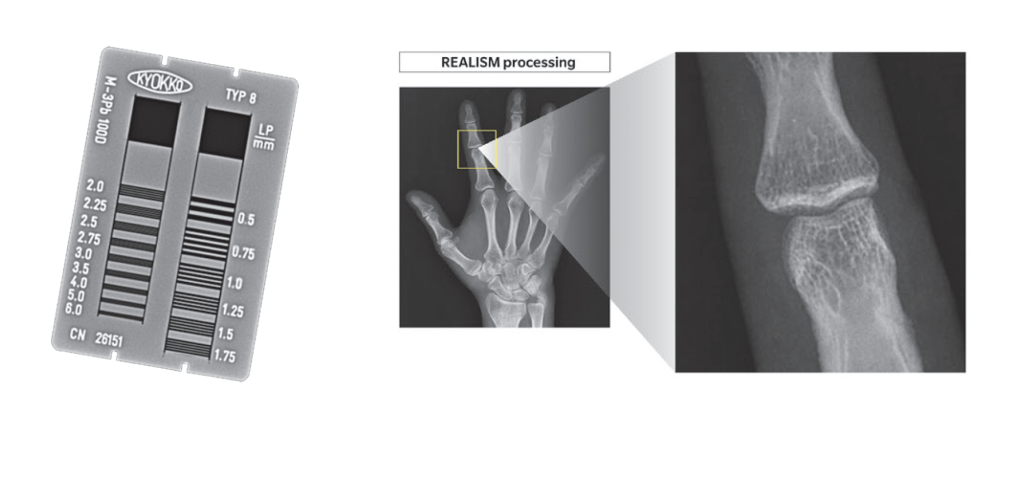

High-resolution imaging enables detailed visualization of small structures.

GL HD-1

Glassless Enhanced Resolution 100μm/200μm Imaging (Selectable)

High-definition and dynamic range imaging
Selectable 100/200μm Resolution
Long power cell life up to 4.3 hours on full charge (1 LiC)
14″ x 17″ panel weighs 3.96 lbs/1.8 kg super lightweight including the capacitor
Lighter than the CR cassette
IPX56 dust and liquid resistance (with integrated power supply)
4.0 sec AED with AeroSync®

GL HD-2

Glassless Enhanced Resolution 100μm/200μm Imaging (Selectable)

High-definition and dynamic range imaging
Selectable 100/200μm Resolution
Long power cell life up to 8.6 hours on full charge (2 LiC)
Storage for up to 100 images
14″ x 17″ panel weighs 4.2 lbs/1.9 kg super lightweight including two capacitors
Lighter than the CR cassette (14″x17″ size: 2.0 kg)
IPX56 dust and liquid resistance (with integrated power supply)
4.0 sec AED with AeroSync®

GL-P

Glassless Standard Resolution Imaging

High-dynamic range imaging at 200μm resolution
14″ x 17″ panel weighs 3.96 lbs/1.8 kg super lightweight including the capacitor
Long power cell life up to 4.3 hours on full charge (1 LiC)
IPX56 dust and liquid resistance (with integrated power supply)
4.0 sec AED with AeroSync®

CARBON

Dynamic Digital Radiography (DDR) Detector

High-Resolution 100μm Imaging with Dynamic Digital Radiography (DDR)

Traditional design Detector (glass substrate)
DDR Capable
High-Definition Imaging
Selectable Image Processing – 100μm/200μm
Available in 14″x17″ and 17″x17″ sizes
Up to 8.6 hours on full charge (2 LiC)
Carbon SMC Monocoque structure design
IPX6 dust and liquid resistance (with integrated power supply)
4.0 sec AED with AeroSync®
